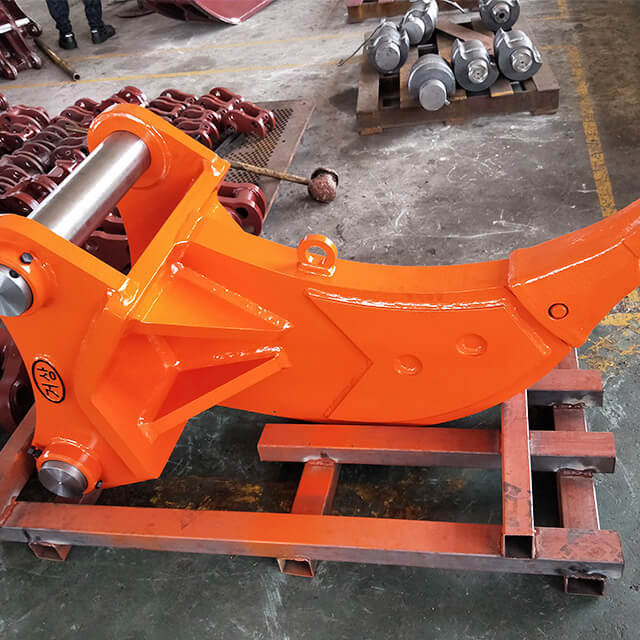

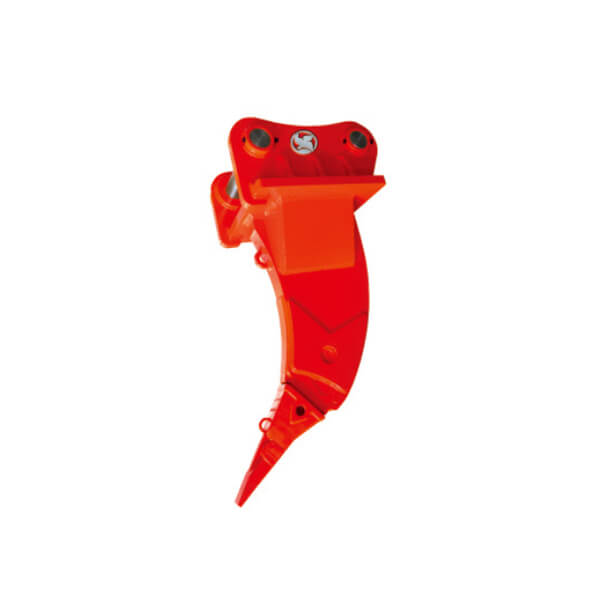

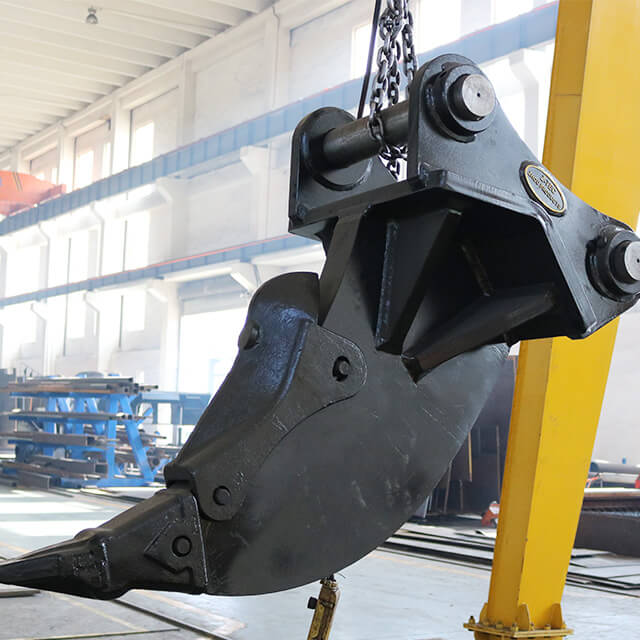

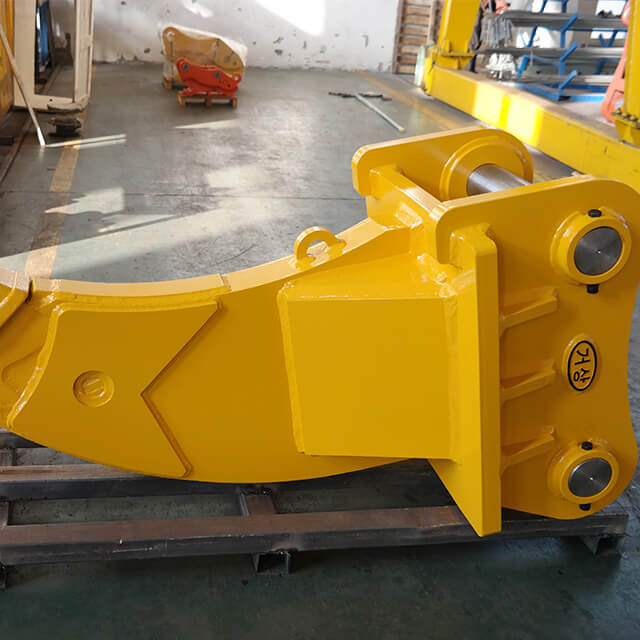

1.JXM ripper is the quality of high strength manganese steel processing produced by selection, As high efficiency and durability, applicable to all kinds of tonnage excavator’s assembly requirement.
2.Suitable for loose and hard soil layer、frozen ground、soft rock、weathered rock etc.It is very convenient for after work digging and loading as high efficiency, it is the most convenient & efficient non-blasting breaking construction way here and now.
For more information, please e-mail or call us.
| Model | Unit | JXS-02 | JXS-04 | JXS-06 | JXS-08 | JXS-10 | JXS-17 | JXS-20 |
| Pin to Pin Distance (A) | mm | 267 | 312 | 392 | 468 | 522 | 590 | 665 |
| Width（B） | mm | 377 | 422 | 572 | 668 | 742 | 822 | 982 |
| Height (C) | mm | 392 | 952 | 1182 | 1262 | 1382 | 1552 | 1652 |
| Pin Diameter (D) | mm | 40~50 | 50~55 | 60~70 | 70~80 | 80~90 | 90~110 | 100~130 |
| Open Width (E) | mm | 150~180 | 180~200 | 200~315 | 300~350 | 360~420 | 400~500 | 500~600 |
| Weight | kg | 61 | 162 | 246 | 422 | 621 | 816 | 802 |
| Suitable Excavator | ton | 4~7 | 5~8 | 9~19 | 17~23 | 23~30 | 33~45 | 45~90 |
