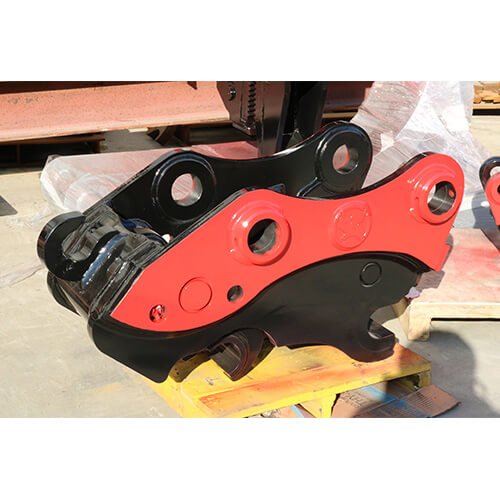

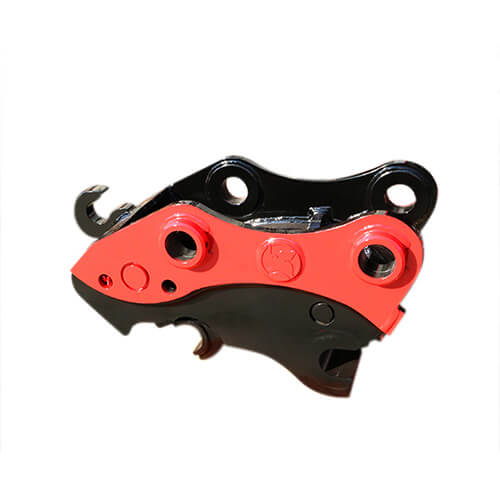

1. JXM quick hitch coupler is made by high strength manganese steel, with structural integration design and hard-wearing quality. It's applicable to all kinds of tonnage excavator's assembly requirement.
2. The operator's cabin is equipped with an electric switch which is convenient for the driver's operation. It replaces the high cost oil pressure by electric power.
3. Each oil cylinder is equipped with check valve and a mechanical locking safety device to ensure the oil flow, ensuring coupler to regular work when the oil circuit on or cut off.
4. Each quick hitch coupler have installed safety pin to protect system, also ensure normal operation when cylinder failure as "dual protect" function.
For more information, please e-mail or call us.
| Model | Unit | JXK-MINI | JXK-02 | JXK-04 | JXK-06 | JXK-08 | JXK-10 | JXK-17 |
| Length（C） | mm | 300-450 | 500-542 | 581-610 | 760 | 920-955 | 965-1100 | 1005-1150 |
| Height（G） | mm | 246 | 307 | 310 | 388 | 492 | 574 | 558-610 |
| Width（B） | mm | 175 | 258-263 | 270-280 | 353-436 | 449-483 | 543-568 | 606-663 |
| Pins Center Distance（D） | mm | 80-150 | 230-270 | 290-360 | 380-420 | 460-480 | 473-540 | 550-620 |
| Arm Width（A) | mm | 80-140 | 155-170 | 180-200 | 232-315 | 306-340 | 375-411 | 416-469 |
| Cylinder Stroke（E) | mm | 95-200 | 200-300 | 300-350 | 340-440 | 420-510 | 460-560 | 600-650 |
| Vertical Pins Center Distance | mm | 159 | 195 | 195 | 220 | 275 | 300 | 360 |
| Weight | kg | 30 | 60-70 | 80-90 | 220-250 | 400-430 | 500-650 | 700-1T |
| Working Pressure | kg/cm² | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 |
| Necessary Flow | L/min | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |
| Suitable Excavator | ton | 1.5-4 | 4-7 | 5-8 | 9-19 | 17-23 | 23-30 | 33-45 |
