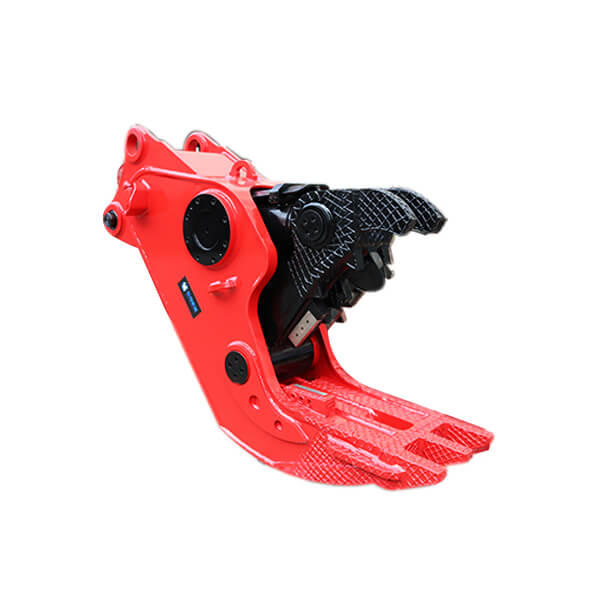

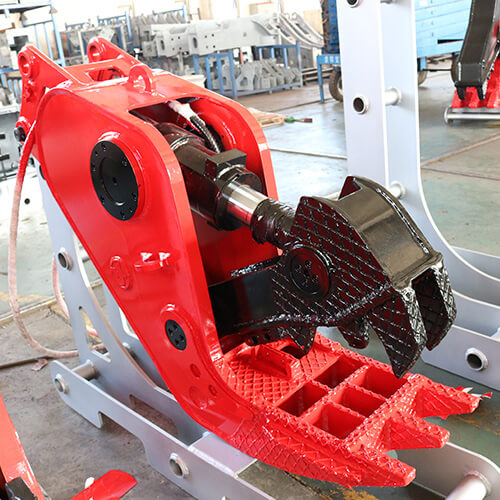

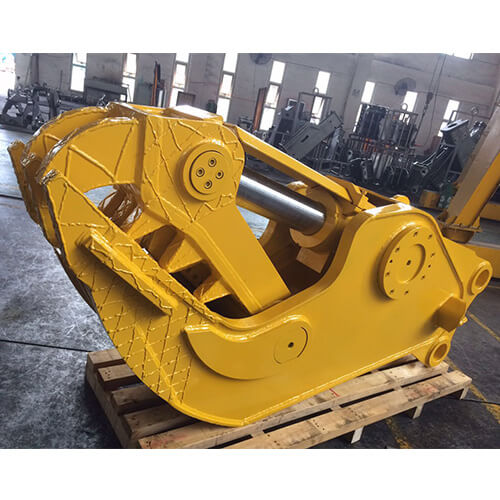

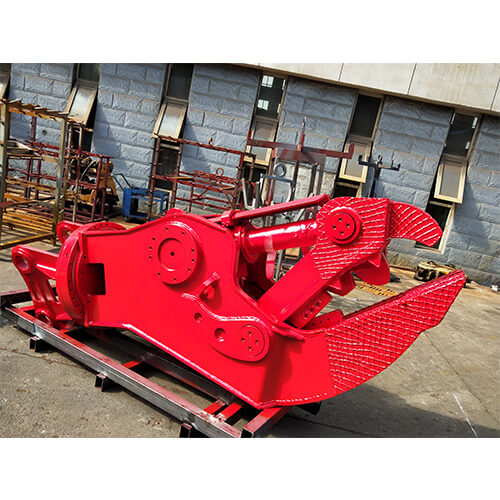

1. It is used for secondary crushing of steel and concrete and separation of steel and concrete.
2. It has the unique layout design of the jaw teeth, with double layer wear resistance protection, and is made of imported HARDOX400 sheet material.
3. The structure is optimized through load design to balance the opening size and crushing force.
For more information, please e-mail or call us.
Model | Unit | JXC04 | JXC06 | JXC08 | JXC10 |
Dead-weight | kg | 660 | 1350 | 1750 | 2750 |
Max Opening | mm | 577 | 730 | 900 | 1015 |
Length | mm | 1720 | 2000 | 2150 | 2374 |
Width | mm | 658 | 660 | 706 | 860 |
Max Crushing Force | T | 83 | 105 | 165 | 225 |
Max Shear Force | T | 126 | 165 | 210 | 305 |
Blade Length | mm | 120 | 150 | 180 | 200 |
Driving Oil Pressure | kg/cm² | 230 | 300 | 320 | 380 |
Suitable Excavator | ton | 6-12 | 12-18 | 18-26 | 26-30 |
