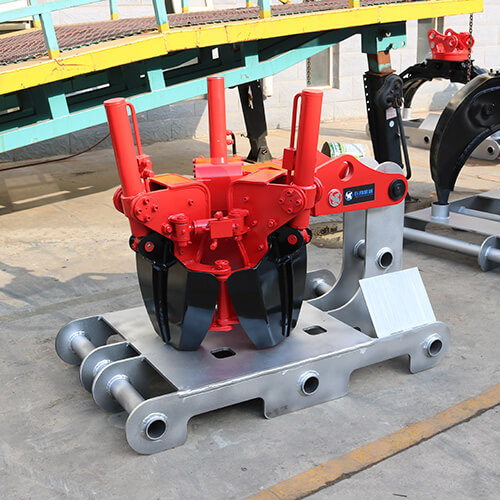

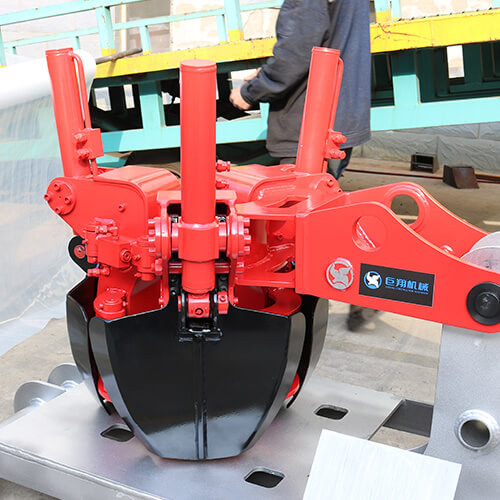

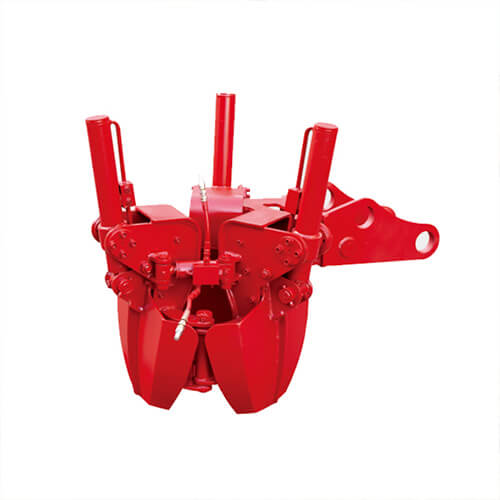

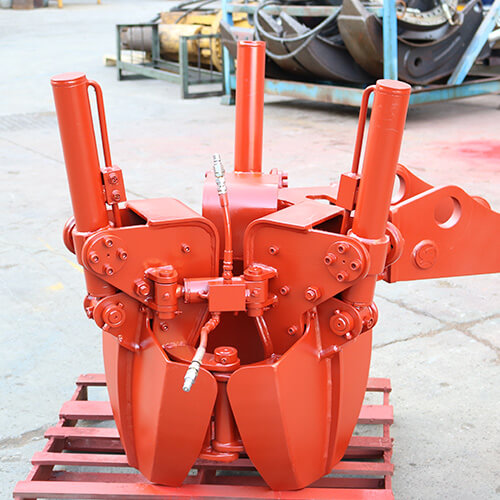

According to different soil quality, the hydraulic tree mover spade has two types of heads: flat-mouth and full-tip. The excavated soil balls are "apple-like" and "radish-like". It needs one minute for transplanting one tree. Apple-like earth balls are suitable for transplanting the sapling in nursery garden for the sales, the earth ball is full, and the root system is better protected, the survival rate of saplings is guaranteed to the greatest extent. The radish-like head is more suitable for seedlings that have not been transplanted and need to break their main roots. It is applicable for the seedling transplanting in nursery garden, and grubbing the dead tree and the same of street green belt and residential community green belt.
For more information, please e-mail or call us.
Model | Unit | JX-YS03 | JX-YS06 | JX-YS08 |
Tree Diameter | mm | 60-100 | 100-150 | 150-200 |
Large Diameter of Tree Ball | mm | 500 | 900 | 1020 |
Small Diameter of Tree Ball | mm | 300 | 400 | 600 |
Depth of Tree Ball | mm | 340 | 600 | 650 |
Ball Volume | m³ | 0.07 | 0.42 | 0.55 |
Number of Shovel | 3 | 4 | 4 | |
Dead-weight | kg | 290 | 900 | 1200 |
Suitable Excavator | ton | 5-8 | 12-17 | 18-25 |
